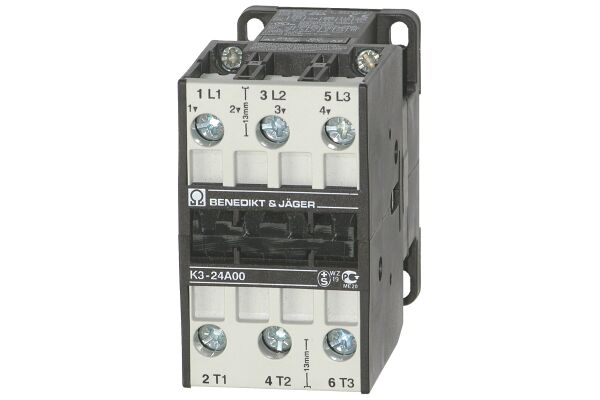

K3-24A00 180 Contactor 11kW/AC3, 3-pole, Coil 180VAC 50Hz

K3-24A00 180

Contactor 11kW/AC3/400V 3-pole, Coil 180-210V 50Hz 200-240V 60Hz, ambient temperature rating from -40°C till +90°C, smallest sizes at maximum performance!

  • SKU
    9005738914651
  • Manufacturer code
    K3-24A00 180
  • Rated control supply voltage Us at AC 50HZ
    180 - 210 V
  • Rated control supply voltage Us at AC 60HZ
    200 - 240 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    50 A
  • Rated operation current Ie at AC-3, 400 V
    24 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation current Ie at AC-4, 400 V
    24 A
  • Rated operation power Ie at AC-4, 400 V
    11 kW
  • Modular version
    true
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Benedict
