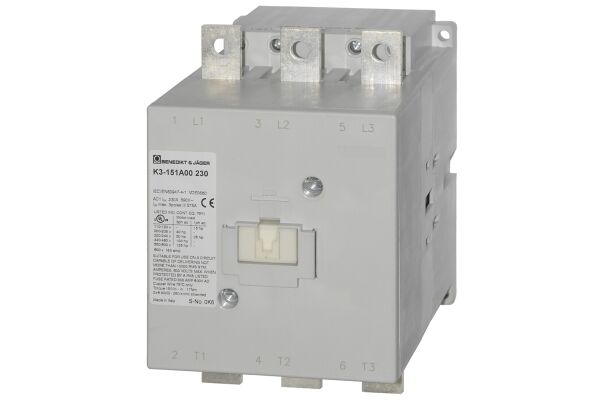

K3-151A00 110 Contactor 75kW/AC3, 3-pole, Coil 110VAC/110=VDC

K3-151A00 110

Contactor 75kW/AC3/400V 3-pole, Coil 110-120V 50/60Hz 110V= DC

  • SKU
    9005738985316
  • Manufacturer code
    K3-151A00 110
  • Rated control supply voltage Us at AC 50HZ
    100 - 110 V
  • Rated control supply voltage Us at AC 60HZ
    110 - 122 V
  • Rated control supply voltage Us at DC
    110 - 110 V
  • Voltage type for actuating
    AC/DC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    230 A
  • Rated operation current Ie at AC-3, 400 V
    150 A
  • Rated operation power at AC-3, 400 V
    75 kW
  • Rated operation current Ie at AC-4, 400 V
    55 A
  • Rated operation power Ie at AC-4, 400 V
    25 kW
  • Modular version
    false
  • Type of electrical connection of main circuit
    Cable clamp
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
