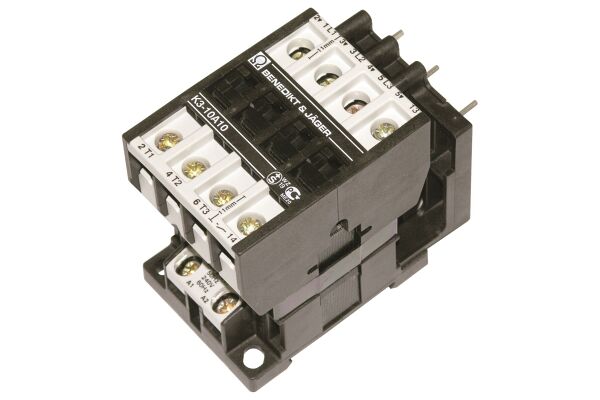

K3-10ND10 230 VK3 Contactor 4kW/AC3, 3-pole, 1NO, Coil 230VAC 50Hz, for M4-

K3-10ND10 230 VK3

Contactor 4kW/AC3/400V 3-pole, 1NO, Coil 220-240V 50Hz 240V 60Hz, with connector for M4- circuit breakers, selfcleaning aux. contacts suitable for electronic circuits - 17V, 5mA, ambient temperature from -40°C till +90°C, smallest sizes at maximum performance!

  • SKU
    9005738233851
  • Manufacturer code
    K3-10ND10 230 VK3
  • Rated control supply voltage Us at AC 50HZ
    220 - 240 V
  • Rated control supply voltage Us at AC 60HZ
    230 - 264 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    1
  • Rated operation current Ie at AC-1, 400 V
    25 A
  • Rated operation current Ie at AC-3, 400 V
    10 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Rated operation current Ie at AC-4, 400 V
    10 A
  • Rated operation power Ie at AC-4, 400 V
    4 kW
  • Modular version
    true
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
