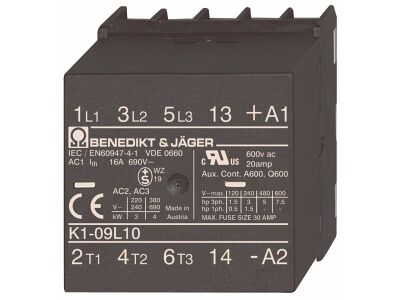

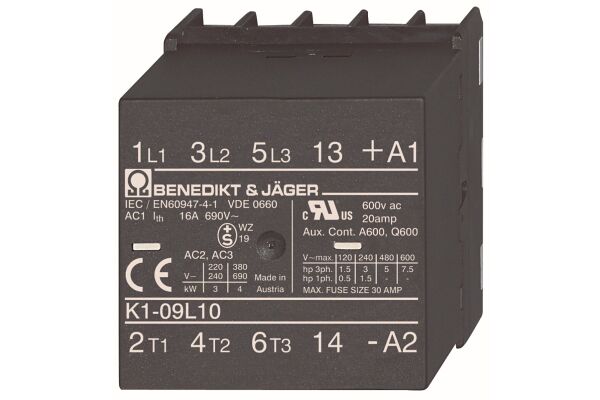

K1-09L10= 24 Mini contactor solder pins 4kW/AC3, 3-pole, 1NO, Coil 24V= DC

K1-09L10= 24

Mini contactor solder pins 4kW/AC3/400V 3-pole, 1NO, Coil 24V= DC, selfcleaning aux. contacts suitable for electronic circuits - 17VDC, 5mA, ambient temperature rating from -40°C till +90°C, smallest sizes at maximum performance!

  • SKU
    9005738045461
  • Manufacturer code
    K1-09L10= 24
  • Rated control supply voltage Us at AC 50HZ
    0 - 0 V
  • Rated control supply voltage Us at AC 60HZ
    0 - 0 V
  • Rated control supply voltage Us at DC
    24 - 24 V
  • Voltage type for actuating
    DC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    1
  • Rated operation current Ie at AC-1, 400 V
    16 A
  • Rated operation current Ie at AC-3, 400 V
    9 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Rated operation current Ie at AC-4, 400 V
    9 A
  • Rated operation power Ie at AC-4, 400 V
    4 kW
  • Modular version
    false
  • Type of electrical connection of main circuit
    PCB connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
