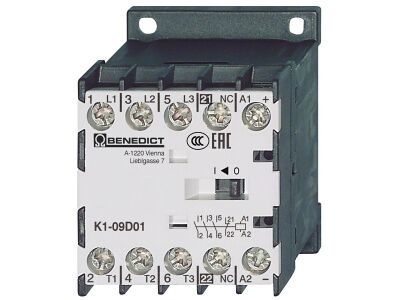

K1-09D01 110 Mini contactor 4kW/AC3, 3-pole, 1NC, Coil 110VAC 50Hz

K1-09D01 110

Mini contactor 4kW/AC3/400V 3-pole, 1NC, Coil 110-115V 50Hz 120-125V 60Hz, selfcleaning aux. contacts suitable for electronic circuits - 17VDC, 5mA, ambient temperature rating from -40°C till +90°C, smallest sizes at maximum performance!

  • SKU
    9005738044945
  • Manufacturer code
    K1-09D01 110
  • Rated control supply voltage Us at AC 50HZ
    110 - 115 V
  • Rated control supply voltage Us at AC 60HZ
    120 - 125 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    20 A
  • Rated operation current Ie at AC-3, 400 V
    9 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Rated operation current Ie at AC-4, 400 V
    9 A
  • Rated operation power Ie at AC-4, 400 V
    4 kW
  • Modular version
    true
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally closed contacts as main contact
    0
  • Number of main contacts as normally open contact
    3
