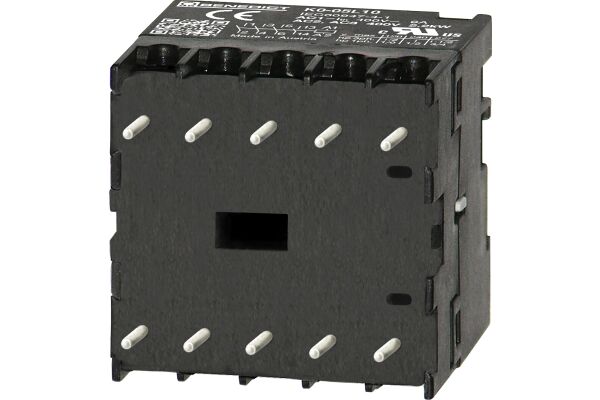

K0-05L00-31 230 Micro contactor solder pins 2,2kW/AC3, 4-pole 3NO+1NC Coil 230VAC 50Hz

K0-05L00-31 230

Micro contactor solder pins only 35x33x35mm! 2,2kW/AC3/400V, 4-pole 3NO+1NC, Coil 220-230V 50Hz 230-250V 60Hz, ambient temperature rating from -40°C till +60°C

  • SKU
    9005738253071
  • Manufacturer code
    K0-05L00-31 230
  • Rated control supply voltage Us at AC 50HZ
    220 - 230 V
  • Rated control supply voltage Us at AC 60HZ
    230 - 250 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    9 A
  • Rated operation current Ie at AC-3, 400 V
    5 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Rated operation current Ie at AC-4, 400 V
    3.5 A
  • Rated operation power Ie at AC-4, 400 V
    1.5 kW
  • Modular version
    false
  • Type of electrical connection of main circuit
    PCB connection
  • Number of normally closed contacts as main contact
    1
  • Number of main contacts as normally open contact
    3
