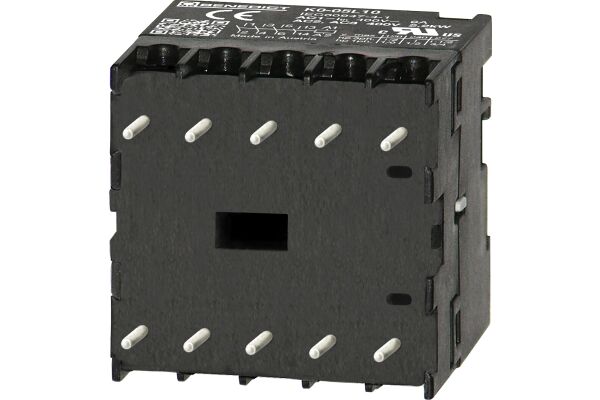

K0-05L00-22 42 Micro contactor solder pins 2,2kW/AC3, 4-pole 2NO+2NC, Coil 42V AC 50Hz

K0-05L00-22 42

Micro contactor solder pins only 35x33x35mm! 2,2kW/AC3/400V, 4-pole 2NO+2NC, Coil 38,5-42V 50Hz 42V 60Hz, ambient temperature rating from -40°C till +60°C

  • SKU
    9005738843111
  • Manufacturer code
    K0-05L00-22 42
  • Rated control supply voltage Us at AC 50HZ
    38.5 - 42 V
  • Rated control supply voltage Us at AC 60HZ
    42 - 42 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Rated operation current Ie at AC-1, 400 V
    9 A
  • Rated operation current Ie at AC-3, 400 V
    5 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Rated operation current Ie at AC-4, 400 V
    3.5 A
  • Rated operation power Ie at AC-4, 400 V
    1.5 kW
  • Modular version
    false
  • Type of electrical connection of main circuit
    PCB connection
  • Number of normally closed contacts as main contact
    2
  • Number of main contacts as normally open contact
    2
