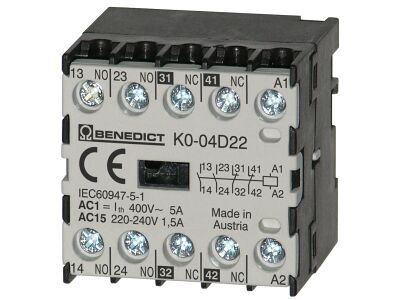

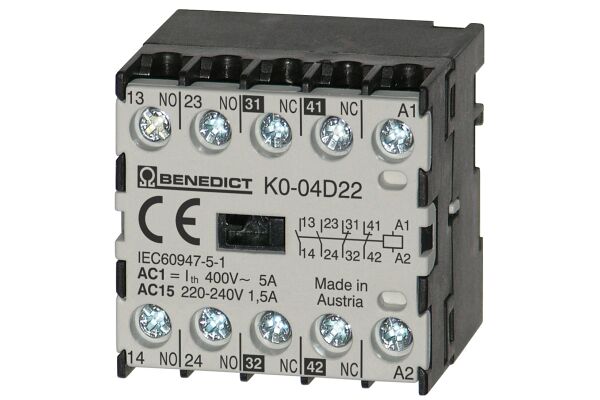

K0-04D22 230 Micro contactor relay 2NO+2NC, Coil 230VAC 50Hz

K0-04D22 230

Micro contactor relay only 35x33x35mm! 2NO+2NC, Coil 220-230V 50Hz 230-250V 60Hz, selfcleaning doublecontacts for highest contact reliability and suitable for electronic circuits - 17VDC, 5mA, ambient temperature rating from -40°C till +60°C

  • SKU
    9005738864710
  • Manufacturer code
    K0-04D22 230
  • Mounting method
    DIN rail
  • Rated control supply voltage Us at AC 50HZ
    220 - 230 V
  • Rated control supply voltage Us at AC 60HZ
    230 - 250 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie , 400 V
    1.5 A
  • Connection type auxiliary circuit
    Screw connection
  • Interface
    false
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of auxiliary contacts as normally open contact
    2
  • Number of auxiliary contacts as normally closed contact, delayed switching
    0
  • Number of auxiliary contacts as normally open contact, leading
    0
  • With LED indication
    false
  • Number of auxiliary contacts as change-over contact
    2
  • Manual operation possible
    true
