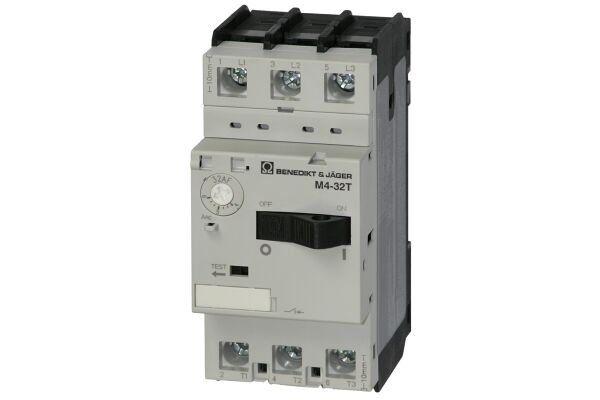

M4-32T-4 Motor protection circuit breaker, fused, push button, 2,5-4A Magn. 52A

M4-32T-4

Motor protection circuit breaker, fused! push button, 2,5-4A Magn. 52A

  • SKU
    9005738204790
  • Manufacturer code
    M4-32T-4
  • Overload release current setting
    2.5 - 4 A
  • Adjustment range undelayed short-circuit release
    52 - 52 A
  • Thermal protection
    true
  • Phase failure sensitive
    true
  • Switch off technique
    Thermomagnetic
  • Rated operating voltage
    690 - 690 V
  • Rated permanent current Iu
    32 A
  • Rated operation power at AC-3, 230 V
    0.75 kW
  • Rated operation power at AC-3, 400 V
    1.5 kW
  • Type of electric connection
    Screw connection
  • Type of execution
    Turn button
  • Device construction
    Built-in device fixed built-in technique
  • With integrated auxiliary switch
    false
  • With integrated under voltage release
    false
  • Number of poles
    3
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Degree of protection (IP)
    IP20
  • Height
    105 mm
  • Width
    45 mm
  • Depth
    75 mm
