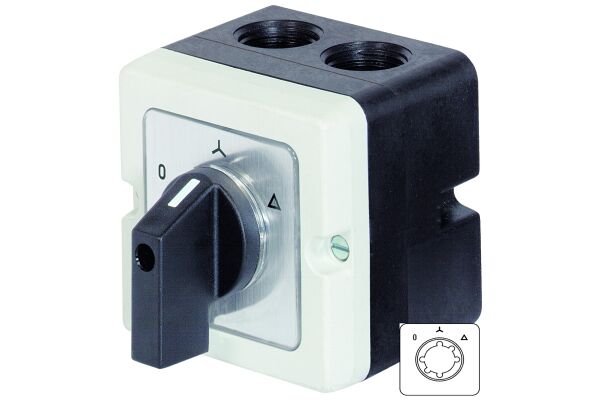

N20 PF SD+G2 Star-Delta switch 32A with enclosure IP65, 1 rotary direction

N20 PF SD+G2

Star-Delta switch 32A with enclosure IP65, 1 rotary direction

  • SKU
    9005738753458
  • Manufacturer code
    N20 PF SD+G2
  • Model
    Star-delta switch
  • Number of poles
    3
  • With 0 (off) position
    true
  • With retraction in 0-position
    false
  • Rated permanent current Iu
    32 A
  • Rated operation current Ie at AC-3, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for ground mounting
    true
  • Suitable for front mounting 4-hole
    false
  • Suitable for distribution board installation
    false
  • Suitable for intermediate mounting
    false
  • Complete device in housing
    true
  • Type of control element
    Short thumb-grip
  • Type of electrical connection of main circuit
    Screw connection
