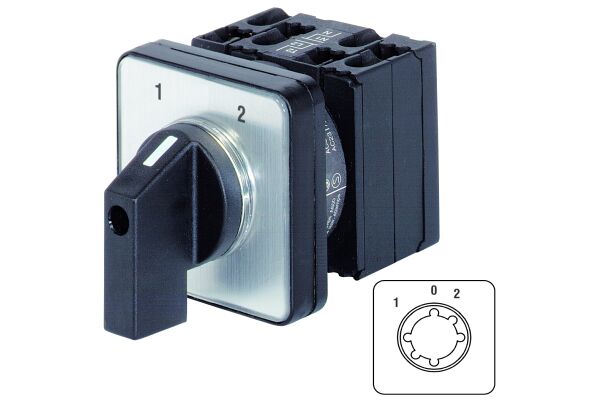

M10H E WU3R1+G2 Reversing switch 20A door Mount 3-pole, 1 latched, 2 spring to 0

M10H E WU3R1+G2

Reversing switch 20A door Mount 3-pole, 1 latched, 2 spring to 0

  • SKU
    9005738753571
  • Manufacturer code
    M10H E WU3R1+G2
  • Number of poles
    3
  • With 0 (off) position
    false
  • With retraction in 0-position
    true
  • Rated permanent current Iu
    20 A
  • Degree of protection (IP), front side
    IP40
  • Suitable for ground mounting
    false
  • Suitable for front mounting 4-hole
    true
  • Suitable for distribution board installation
    false
  • Suitable for intermediate mounting
    false
  • Complete device in housing
    false
  • Type of control element
    Short thumb-grip
  • Type of Execution
    Reverser
  • Max. rated operation voltage Ue AC
    690 V
  • Switch positions
    2
  • Device construction
    Built-in device
  • Width in number of modular spacings
    0
  • Front shield size
    48x48 mm
