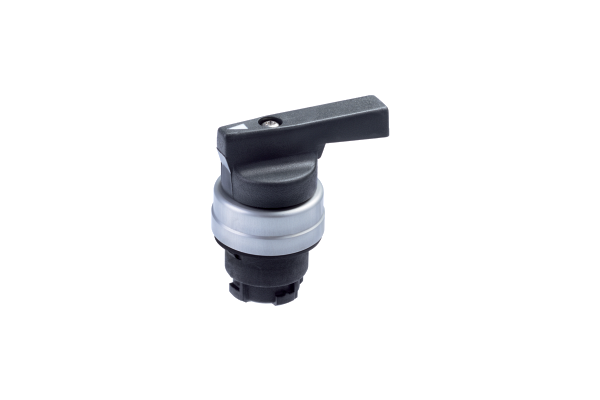

EWT21.1 Cam switch

EWT21.1
Long knob
  • SKU
    4030661484884
  • Manufacturer code
    101006370
  • Colour of the front ring
    Silver
  • Colour of the handle
    Grey
  • Type of Execution
    Toggle
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    300000 Operations
  • Type of execution, mounting
    mounting flange
  • Design, Sealing
    Form seals
    Lip gaskets
    Membrane
  • Type of Execution, Toggle
    long
  • Angle, Switching angle, right
    55 °
  • Diameter, Front ring
    29.5 mm
  • Diameter, hole, mounting diameter
    22.3 mm
  • Distance, Grid dimensions [mm]
    50 x 50 mm
  • Height, General
    28 mm
  • Length, Toggle
    46 mm
  • Thickness, Front panel, maximum
    6 mm
  • Thickness, Front panel, minimum
    1.5 mm
  • Material, front ring
    Aluminium
  • Material, toggle
    Plastic
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • Number, plunger
    1
  • Switch positions
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
  • Review, general dimensions (length, width, height, etc.)
    Mounting hole Ø: 22 mm
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661484884
  • SAP, product group
    Initial
  • SAP, gross weight
    45.000 g
  • SAP, net weight
    45.000 g
  • Temperature, Ambient temperature[generated product variant]
    +0 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    0 °C
  • Tolerance, absolute
    0.4
  • Tightening torque, tightening torque, screw
    0.6 Nm
  • Web Type
    Product range
  • Selection (Yes/No), Full insulation
    Yes
  • Selection (Yes/No), Probing possible
    Yes
  • Type of Execution, Latching position
    right

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-24472-707083b3b9da450cd58b56f56bf46e3d.pdf (PDF, 1.78 MB)
