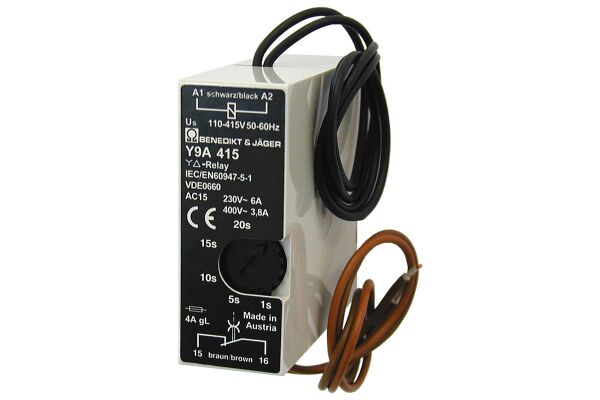

Y9AL 415 Timer relay for Star-Delta contactor 1-20s, 110-415V 50/60Hz

Y9AL 415

Timer relay for Star-Delta contactor 1-20s, 110-415V 50/60Hz

  • SKU
    9005738004697
  • Manufacturer code
    Y9AL 415
  • Type of electric connection
    Screw connection
  • Rated control supply voltage Us at AC 50HZ
    110 - 415 V
  • Rated control supply voltage Us at AC 60HZ
    110 - 415 V
  • Rated control supply voltage Us at DC
    0 - 0 V
  • Voltage type for actuating
    AC
  • Width
    22.5 mm
  • Height
    67 mm
  • Depth
    76 mm
  • Function delay-on energization
    true
  • Function delay on de-energization
    false
  • Function floating contact on energization
    false
  • Function floating contact on de-energization
    false
  • Function star-delta
    true
  • Function pulse shaping
    false
  • Function flashing, starting with pause, fixed time
    false
  • Function flashing, starting with pulse, fixed time
    false
  • Clock function, starting with pause, variable
    false
  • Clock function, starting with pulse, variable
    false
  • With plug-in socket
    true
  • Remote operation possible
    false
  • Suitable only for remote control
    false
  • Pluggable on auxiliary contact block
    false
  • Time range
    1 - 20 min
  • Number of outputs, undelayed, normally closed contact
    0
  • Number of outputs, undelayed, normally open contact
    0
  • Number of outputs, undelayed, change-over contact
    0
  • Number of outputs, delayed, normally closed contact
    0
  • Number of outputs, delayed, normally open contact
    1
  • Number of outputs, delayed, change-over contact
    0
  • Outputs, reversible delayed/undelayed
    true
  • With semiconductor output
    true

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Benedict
