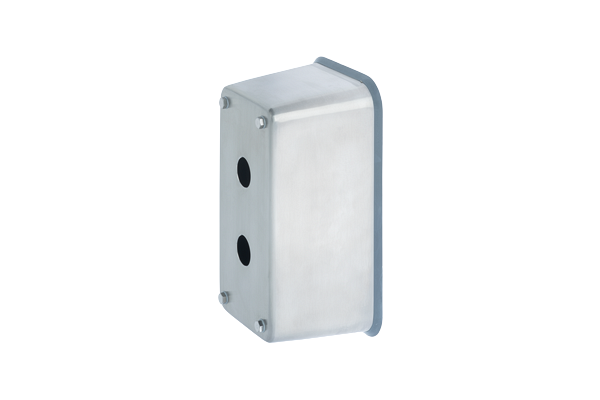

NBG632/NM Command device accesory

NBG632/NM
for application in food producing machinery
Enclosure seal for food machinery
Stainless steel enclosure
  • SKU
    4030661451121
  • Manufacturer code
    101182350
  • Type of Execution, General
    Assembly housing
  • Depth, General
    204 mm
  • Width, General
    110 mm
  • Material, housing
    Stainless steel (V4A)
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    BG
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661451121
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    1250.000 g
  • SAP, net weight
    1250.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Colour, bottom part of the enclosure
    Silver
  • Type of Execution, IP Protection class, General
    IP67
    IP69K
  • Type of Execution, Position of the cable gland
    mounting holes
  • Spacing, middle spacing, holes
    84 mm
  • Height, General
    86.5 mm
  • Number, Command positions
    2
  • Number, cable glands
    1
  • Colour, Sealing
    Grey
  • Diameter, cable bushing
    20.3 mm
