NUE Command device accesory

NUE

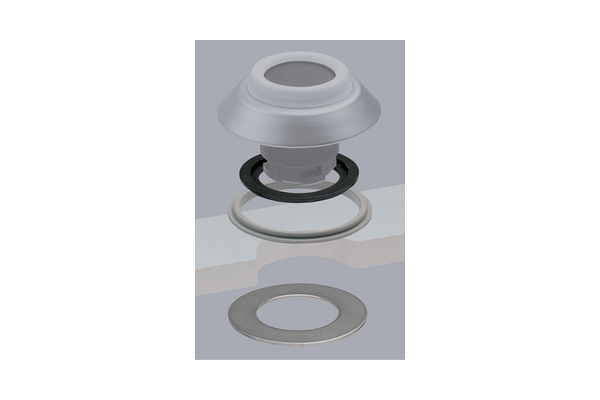

Adapter for fitting the device heads of the series N in hole diameter 30.5 mm
hygienic design
Protection class IP69K
  • SKU
    4250116200610
  • Manufacturer code
    101164776
  • Construction type housing
    Reducing 30,5mm to 22,3mm
  • Type of Execution, General
    Reducing Ring
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
    EN IEC 60204-1
    EN IEC 60947-5-3
    EN IEC 62061
    EN IEC 60947-5-5
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4250116200610
  • SAP, product group
    Initial
  • SAP, gross weight
    20.000 g
  • SAP, net weight
    20.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Distance, Grid dimensions [mm]
    50 x 50 mm
  • Diameter, hole
    30.5 mm
  • Included in delivery, number and type, general
    Adapter ring, Gaskets, Washer
