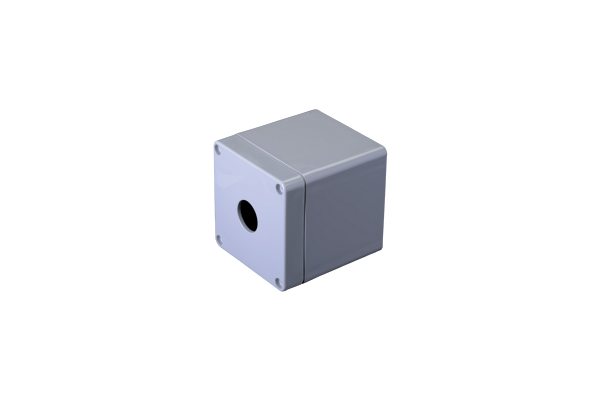

KG422-B Command device accesory

KG422-B
plastic assembly housing
suitable for the installation of command devices
anthracite gray RAL 7035, light gray
  • SKU
    4030661613314
  • Manufacturer code
    101008570
  • Type of Execution, General
    Assembly housing
  • Depth, General
    80 mm
  • Width, General
    82 mm
  • Material, housing
    ABS
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661613314
  • SAP, product group
    Initial
  • SAP, gross weight
    199.444 g
  • SAP, net weight
    199.444 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +65 °C
  • Temperature, ambient temperature, maximum
    65 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Colour, bottom part of the enclosure
    Grey
  • Colour, upper part of the enclosure
    Grey
  • Type of Execution, Cable entry
    1x M20
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Position of the cable gland
    bottom
  • Spacing, middle spacing, holes
    40 mm
  • Height, General
    85 mm
  • Note, Ordering data
    Note: Cable glands are not included in the delivery of the e
  • Number, Command positions
    2
  • Review, general dimensions (length, width, height, etc.)
    Diameter of the through-holes for cable glands: 22.3 cm + 0.

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
