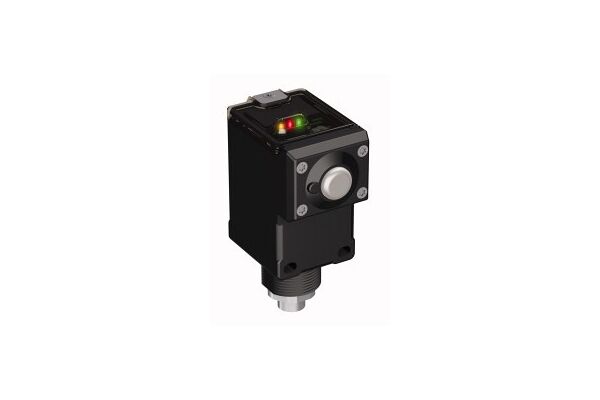

DX80N2Q45TH Radio Transmission System, Base Unit for Serial Sensors, Node for Connecting Ext

Radio Transmission System, Base Unit for Serial Sensors, Node for Connecting External Sensors, Operating voltage 3.6…5.5 VDC, Max. range 1000000 mm, Protection class IP67, Mechanical screw-in thread M30 × 1.5, Connection via M12 × 1 female connector, 4-pin, Integrated multi-color display lights, 2.4 GHZ frequency band, Frequency hopping FHSS, Time division multiplex access - TDMA, Operating voltage: 3.6…5.5 VDC, Current consumption: ≤ 100 µA, Supply via 2x 3.6 V Li-ion AA batteries, supplied with the device, FCC-ID UE300DX80-2400 This device complies with FCC para. 15, sub para. C, 15.247 ETSI/EN: In compliance with EN 300 328: V1.7.1 (2006‐05)IC: 7044A‐DX8024, Radiation protection 10 V/m for 80-2700 MHz acc. to EN 61000-6-2
