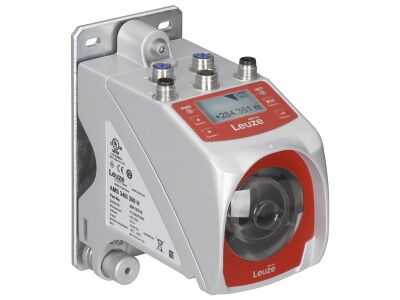

AMS 384i 120 H Optical distance sensor

AMS 384i 120 H
This optical distance sensor comes pre-mounted with a mounting plate and features a laser light source. It provides high accuracy and reproducibility within a substantial measurement range.
  • SKU
    2110-50113738
  • Manufacturer code
    50113738
  • Scanning principle
    Other
  • Type of analogy output
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    Other
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 3
  • Supply voltage
    18 - 30 V
  • Width sensor
    84 mm
  • Height of sensor
    166.5 mm
  • Length of sensor
    159 mm
  • Setting procedure
    Manual adjustment
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Laser protection class
    Class 2
  • Type of light
    Laser diode, red light
  • Measuring principle for optical distance measurement
    Other
  • Degree of protection (IP)
    IP65
  • Voltage type
    DC
    DC
    DC
    DC
  • Ambient temperature
    -30 - 50 °C
  • Pre failure notice
    false
  • Material of optical surface
    Glass
  • Housing material
    Other
    Metal
  • Material of cable sheath
    Other
  • With time function
    false
  • Interface
    INTERBUS
  • Geometrical resolution
    10 mm
  • Supply voltage
    18 ... 30
  • Measurement range (mm)
    200 ... 120000
  • Interface
    Interbus-S
  • Ambient temperature
    -30 ... 50
  • Display
    LED, LC Display
  • Pre-mounted
    Mounting plate
  • Manufacturer Leuze

Product attachments

DS_AMS-384i-120-H_eng_50113738 (LINK)
