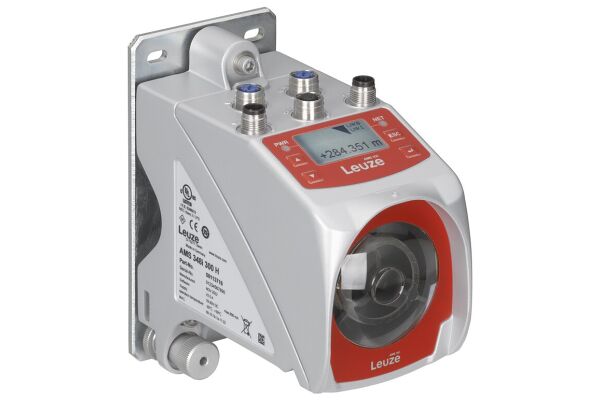

Compact optical distance sensor with laser light source, designed for precise measurements.

SKU

2110-50113728
Manufacturer code

50113728
Scanning principle

Other
Type of analogy output

Other
Type of electric connection

Connector M12
Type of switching output

Other
Type of switch function

Other
Operation agent-safety class

Safety class 3
Supply voltage

18 - 30 V
Width sensor

84 mm
Height of sensor

166.5 mm
Length of sensor

159 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Laser protection class

Class 2
Type of light

Laser diode, red light
Measuring principle for optical distance measurement

Other
Degree of protection (IP)

IP65
Voltage type

DC
DC
DC
DC
Ambient temperature

-5 - 50 °C
Pre failure notice

false
Material of optical surface

Glass
Housing material

Other
Metal
Material of cable sheath

Other
With time function

false
Interface

Ethernet
Geometrical resolution

10 mm
Most suitable applications

Ideal for industrial applications requiring accurate distance measurements over a large range.
Supply voltage

18 ... 30
Measurement range (mm)

200 ... 300000
Interface

EtherNet IP
Ambient temperature

-5 ... 50
Display

LED, LC Display
Pre-mounted

Mounting plate
