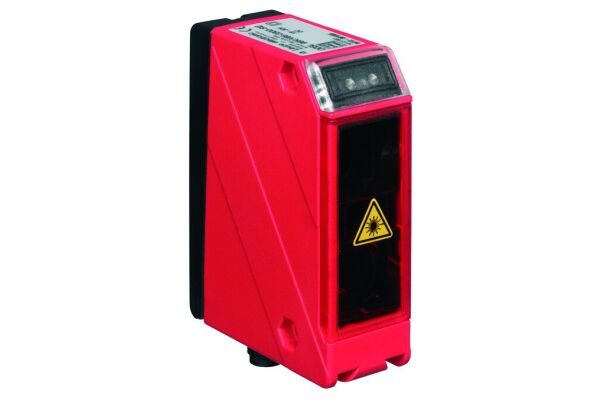

ODSL 96K/66-2300-S12 Sensors for distance measurement with large operating range

ODSL 96K/66-2300-S12
Sensors designed for distance measurement with a large operating range.
  • SKU
    2110-50101882
  • Manufacturer code
    50101882
  • Scanning principle
    Push button
  • Type of analogy output
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Anticoincidence
  • Operation agent-safety class
    Safety class 2
  • Supply voltage
    10 - 30 V
  • Width sensor
    30 mm
  • Height of sensor
    90 mm
  • Length of sensor
    70 mm
  • Setting procedure
    Teach-In
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Laser protection class
    Class 2
  • Type of light
    Laser diode, red light
  • Measuring principle for optical distance measurement
    Other
  • Degree of protection (IP)
    IP67
  • Voltage type
    DC
    DC
    DC
    DC
  • Ambient temperature
    -20 - 50 °C
  • Pre failure notice
    false
  • Material of optical surface
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Other
  • With time function
    false
  • Relative measurement accuracy
    3 %
  • Relative repeat accuracy
    2 %
  • Most suitable applications
    Distance measurement tasks
  • Supply voltage
    10 ... 30
  • Operational controls
    Teach button
  • Scanning system
    Against object
  • Measurement range (mm)
    150 ... 2300
  • Manufacturer Leuze

Product attachments

DS_ODSL-96K-66-2300-S12_eng_50101882 (LINK)
