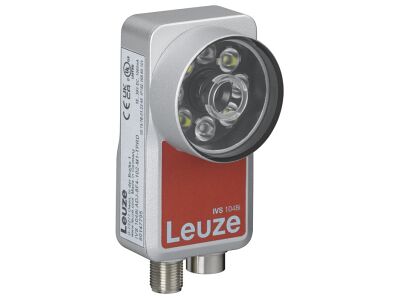

IVS 108 M1-102-W0 Vision sensor

IVS 108 M1-102-W0
Vision sensors with advanced software functions for presence control and code reading. Equipped with high-resolution cameras and versatile connectivity options.
  • SKU
    2110-50146024
  • Manufacturer code
    50146024
  • Number of semiconductor outputs with signalling function
    3
  • Type of electric connection
    Connector M12
  • Width sensor
    47 mm
  • Height of sensor
    58 mm
  • Length of sensor
    58 mm
  • With configurable message output
    true
  • Ambient temperature
    -10 - 50 °C
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Type of switching output of the OSSD
    PNP/NPN
  • Most suitable applications
    Presence control Reading of 1D and 2D codes
  • Supply voltage
    10 ... 30
  • Ambient temperature
    -10 ... 50
  • Interface
    Ethernet
  • Camera resolution horizontal (px)
    320
  • Camera resolution vertical (px)
    240
  • Transmission protocol
    TCP/IP
  • Manufacturer Leuze

Product attachments

DS_IVS-108-M1-102-W0_eng_50146024 (LINK)
