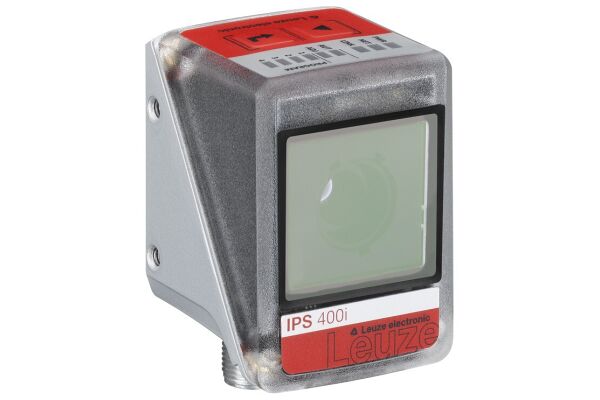

IPS 448i FIX-F4-102-I3-G Smart camera

IPS 448i FIX-F4-102-I3-G
Smart camera with advanced compartment positioning capabilities and a versatile working range.
  • SKU
    2110-50143672
  • Manufacturer code
    50143672
  • Number of semiconductor outputs with signalling function
    5
  • Type of electric connection
    Connector M12
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    43 mm
  • Height of sensor
    61 mm
  • Length of sensor
    44 mm
  • With configurable message output
    true
  • Ambient temperature
    0 - 45 °C
  • Supply voltage
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Most suitable applications
    Double compartment depth Single compartment depth
  • Supply voltage
    18 ... 30
  • Ambient temperature
    0 ... 45
  • Interface
    Ethernet
    PROFINET
  • Working range (mm)
    350 ... 1900 (up to 2400 with reflector)
  • Camera resolution horizontal (px)
    1280
  • Camera resolution vertical (px)
    960
  • Manufacturer Leuze

Product attachments

DS_IPS-448i-FIX-F4-102-I3-G_eng_50143672 (LINK)
