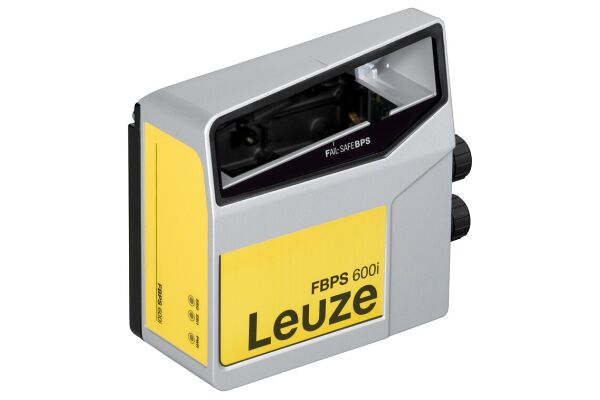

FBPS 607i 07 SM 100 Bar code positioning system

FBPS 607i 07 SM 100
Compact barcode positioning system with safe position detection and LED display element.
  • SKU
    50140954
  • Manufacturer code
    50140954
  • Scanning principle
    Other
  • Type of analogy output
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    Other
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    116.3 mm
  • Height of sensor
    112.5 mm
  • Length of sensor
    51.5 mm
  • Setting procedure
    Other
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Geometrical resolution
    1 mm
  • Laser protection class
    Class 1
  • Type of light
    Laser diode, red light
  • Measuring principle for optical distance measurement
    Other
  • Degree of protection (IP)
    IP65
  • Voltage type
    DC
    DC
    DC
    DC
  • Ambient temperature
    -5 - 60 °C
  • Pre failure notice
    false
  • Material of optical surface
    Glass
  • Housing material
    Other
  • Material of cable sheath
    Other
  • With time function
    false
  • Signalling interval
    0.8 Hz
  • Switching frequency
    0.08 Hz
  • Supply voltage
    24
  • Ambient temperature
    -5 ... 60
  • Interface
    2-channel standard SSI
  • Depth of field (mm)
    50 ... 170
  • Most suitable applications
    Safe position detection in industrial automation.
  • Plug outlet
    Lateral

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze

Product attachments

DS_FBPS-607i-07-SM-100_eng_50140954 (LINK)
