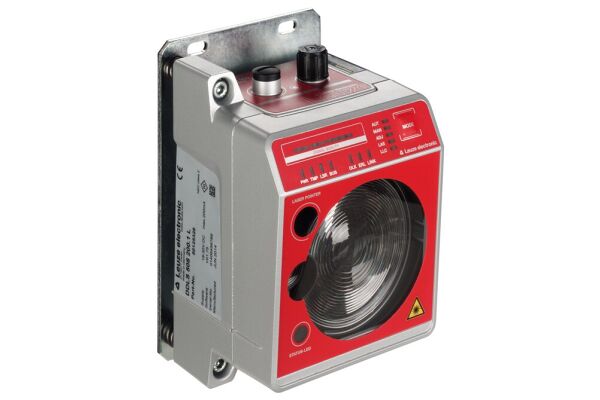

Optical data transmission device pre-mounted on a mounting plate, designed for operating parallel light axes without being influenced by reflective surfaces. It supports remote diagnosis and maintenance via a web server.

SKU

2110-50134417
Manufacturer code

50134417
Ethernet

false
Bus type

Other
Flush-mounted installation

false
Suitable for wall mounting

true
Suitable for DIN rail (top hat rail) mounting

false
Socket outlet adapter

false
Height

156 mm
Width

100 mm
Depth

99.5 mm
Most suitable applications

Operation of parallel light axes Environments with reflective surfaces Remote diagnostics and maintenance
Special version

Operation of parallel light axes
Not influenced by reflective surfaces
Remote diagnosis via web server
Supply voltage

18 ... 30
Voltage type

DC
Ambient temperature

-5 ... 50
Interface

PROFINET
Working range (mm)

100 ... 120000
Pre-mounted

Mounting plate

Manufacturer Leuze
