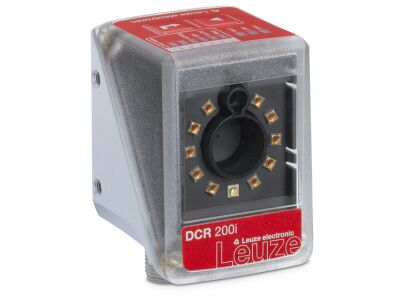

DCR 202iC FIX-L1-102-R3-F099 Stationary 2D-code reader

DCR 202iC FIX-L1-102-R3-F099
Compact stationary 2D-code reader with versatile software functions for barcode and QR code reading.
  • SKU
    50146852
  • Manufacturer code
    50146852
  • Voltage type
    DC
  • Model
    Fixed mounted
  • Number of digital inputs
    1
  • Max. transmission range
    800 mm
  • Nominal voltage DC
    30 V
  • Radio standard Bluetooth
    false
  • Radio standard WLAN 802.11
    false
  • Type of fastening
    Other
  • With exchange lens
    false
  • Width
    43 mm
  • Height
    61 mm
  • Depth
    44 mm
  • Degree of protection (IP)
    IP65
  • Interface
    RS-232
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 50
  • Type of interface
    RS 232
    Ethernet
    RS 422
    OPC-UA
  • Most suitable applications
    Reading 1D and 2D codes from 50 to 800 mm distance.
  • Camera resolution horizontal (px)
    1280
  • Camera resolution vertical (px)
    960

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze

Product attachments

DS_DCR-202iC-FIX-L1-102-R3-F099_eng_50146852 (LINK)
