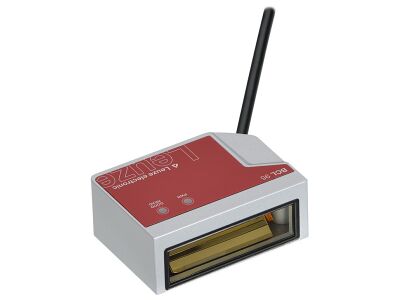

A stationary bar code reader with various functions including alignment mode, AutoConfig, and LED indicators.

SKU

2110-50143261
Manufacturer code

50143261
Type of electric connection

Cable with connector
Operation agent-safety class

Safety class 3
Width sensor

62 mm
Height of sensor

23.8 mm
Length of sensor

56.9 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

5 - 40 °C
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Number of semiconductor outputs with signalling function

2
Switching output

NPN
Supplyoltage (V)

10 ... 30
Ambient temperature

5 ... 40
Type of interface

RS 232
Reading method

Line scanner
Light beam exit

Lateral
Display

LED
Most suitable applications

Barcode scanning in retail environments Inventory management systems Automated assembly lines
