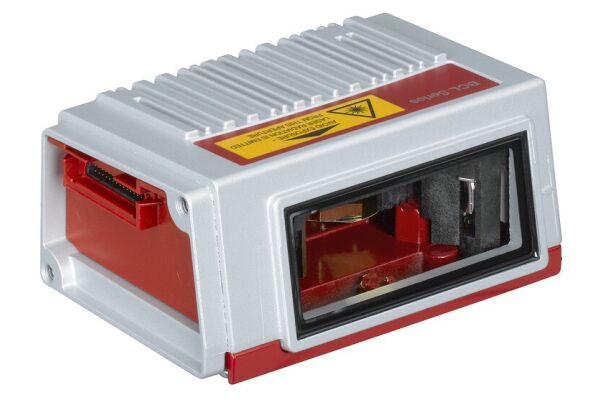

This stationary barcode reader features heating and various functions including AutoReflAct, alignment mode, and AutoConfig. It offers a typical scanning rate of 1,000 scans per second and a reading distance of 100 to 700 mm. The device operates as a line scanner with a front light beam exit.

SKU

2110-50141833
Manufacturer code

50141833
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

95 mm
Height of sensor

44 mm
Length of sensor

68 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

-35 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

-35 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Line scanner
Light beam exit

Front
Display

LED, Monochromatic
Operational controls

Button(s)
Special version

Heating

Manufacturer Leuze
