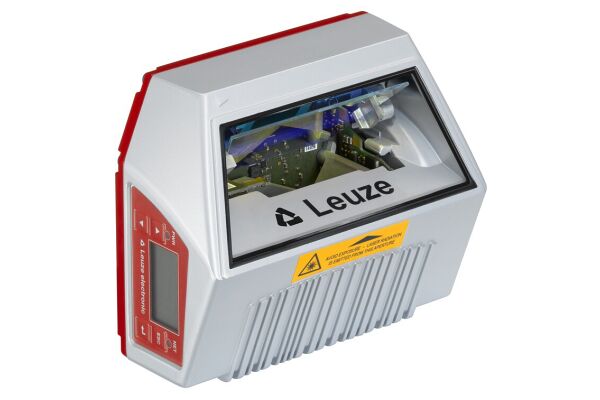

BCL 601i OM 100 Stationary bar code reader

BCL 601i OM 100
This stationary barcode reader features advanced functions such as AutoConfig, Alignment mode, and LED indicator. It offers a typical scanning rate of 1,000 scans per second and supports a reading distance of 400 to 900 mm.
  • SKU
    2110-50132851
  • Manufacturer code
    50132851
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    173 mm
  • Height of sensor
    84 mm
  • Length of sensor
    147 mm
  • With configurable message output
    true
  • Laser protection class
    Class 2
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    405 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Scanning interval
    10 Hz
  • Supplyoltage (V)
    10 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    RS 485
    USB
  • Reading method
    Oscillating-mirror scanner
  • Light beam exit
    Zero position at side at angle less than 90°
  • Display
    LED, Monochromatic
  • Operational controls
    Button(s)
  • Manufacturer Leuze

Product attachments

DS_BCL-601i-OM-100_eng_50132851 (LINK)
