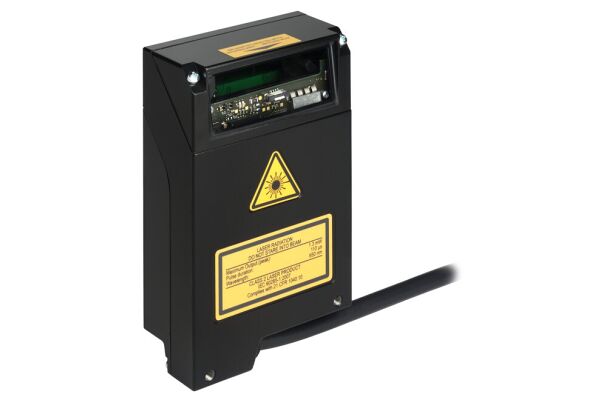

BCL 148 V 340 B Stationary bar code reader

BCL 148 V 340 B
Stationary bar code reader with adjustable focus and lateral light beam exit.
  • SKU
    2110-50131538
  • Manufacturer code
    50131538
  • Type of electric connection
    Other
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    71 mm
  • Height of sensor
    38 mm
  • Length of sensor
    118.5 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    5 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    650 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    5 ... 40
  • Type of interface
    RS 232
    RS 485
  • Reading method
    Line scanner
  • Light beam exit
    Lateral
  • Manufacturer Leuze

Product attachments

DS_BCL-148-V-340-B_eng_50131538 (LINK)
