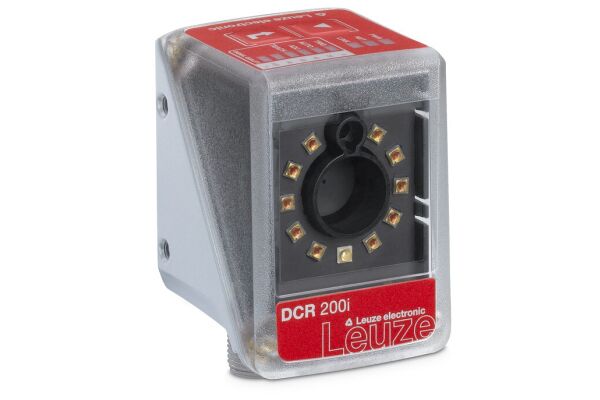

DCR 202i FIX-M1-102-R3-P Stationary 2D-code reader

DCR 202i FIX-M1-102-R3-P
Stationary 2D-code reader with a polarization filter and versatile software functions for reading both 1D and 2D codes.
  • SKU
    2110-50128789
  • Manufacturer code
    50128789
  • Voltage type
    DC
  • Model
    Fixed mounted
  • Number of digital outputs
    1
  • Number of digital inputs
    1
  • Max. transmission range
    220 mm
  • Nominal voltage DC
    30 V
  • Radio standard Bluetooth
    false
  • Radio standard WLAN 802.11
    false
  • Type of fastening
    Other
  • With exchange lens
    false
  • Width
    43 mm
  • Height
    61 mm
  • Depth
    44 mm
  • Degree of protection (IP)
    IP65
  • Interface
    RS-232
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 50
  • Type of interface
    RS 232
    Ethernet
    RS 422
  • Most suitable applications
    Reading 1D and 2D codes at a distance of 50 to 220 mm.
  • Special version
    Polarization filter
  • Camera resolution horizontal (px)
    1280
  • Camera resolution vertical (px)
    960
  • Manufacturer Leuze

Product attachments

DS_DCR-202i-FIX-M1-102-R3-P_eng_50128789 (LINK)
