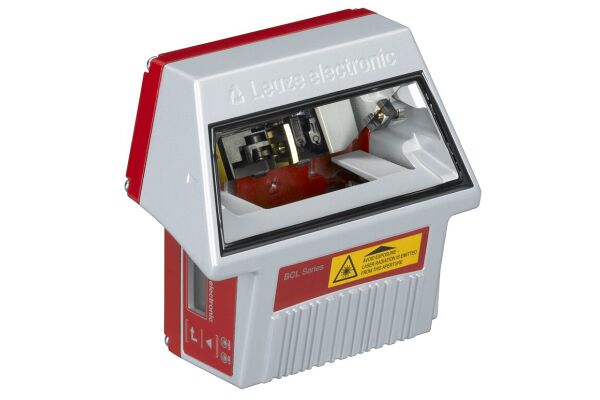

Stationary barcode reader with heating, offering advanced features like AutoConfig and Code fragment technology, ideal for precise and efficient scanning.

SKU

2110-50116420
Manufacturer code

50116420
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

125 mm
Height of sensor

58 mm
Length of sensor

110 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

-35 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Scanning interval

10 Hz
Supplyoltage (V)

18 ... 30
Ambient temperature

-35 ... 40
Type of interface

PROFINET
USB 2.0
Reading method

Oscillating-mirror scanner
Light beam exit

Zero position at side at angle less than 90°
Display

LED, Monochromatic
Operational controls

Button(s)
Special version

Heating

Manufacturer Leuze
