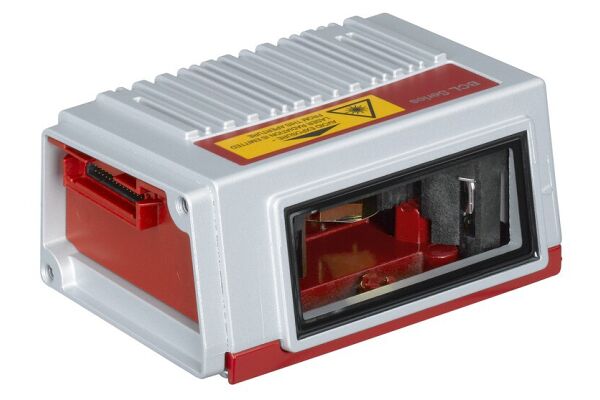

BCL 308i SL 102 D Stationary bar code reader

BCL 308i SL 102 D
This stationary barcode reader offers advanced features such as AutoConfig, alignment mode, AutoControl, and code fragment technology. It supports a scanning rate of 1,000 scans per second with a reading distance of 100 to 700 mm.
  • SKU
    2110-50116401
  • Manufacturer code
    50116401
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    95 mm
  • Height of sensor
    44 mm
  • Length of sensor
    68 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    Ethernet
    USB 2.0
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED, Monochromatic
  • Manufacturer Leuze

Product attachments

DS_BCL-308i-SL-102-D_eng_50116401 (LINK)
