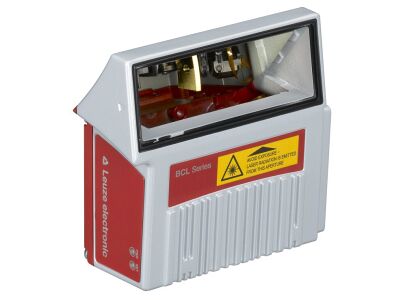

BCL 308i R1 N 100 Stationary bar code reader

This stationary barcode reader features advanced functions such as AutoConfig, alignment mode, and code fragment technology. It offers a typical scanning rate of 1,000 scans per second and a reading distance of 20 to 130 mm. The device uses a raster scanner with a lateral light beam exit via a deflecting mirror. It operates within a supply voltage of 18 to 30 V DC and includes selectable inputs and outputs. Connectivity is provided through Ethernet and USB interfaces, and it comes with a plug connector. The device has a compact design with dimensions of 103 mm x 44 mm x 96 mm and operates in ambient temperatures of 0 to 40 °C. It is certified by c UL US.
