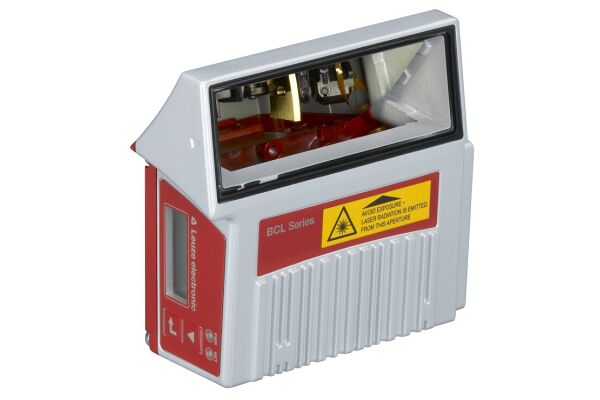

Stationary barcode reader equipped with advanced features like AutoConfig and a monochromatic graphic display, ideal for efficient and precise scanning.

SKU

2110-50116384
Manufacturer code

50116384
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

103 mm
Height of sensor

44 mm
Length of sensor

96 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

Ethernet
USB 2.0
Reading method

Raster scanner with deflecting mirror
Light beam exit

Lateral with deflecting mirror
Display

LED, Monochromatic
Most suitable applications

Industrial settings requiring high-speed scanning Environments needing precise code fragment technology

Manufacturer Leuze
