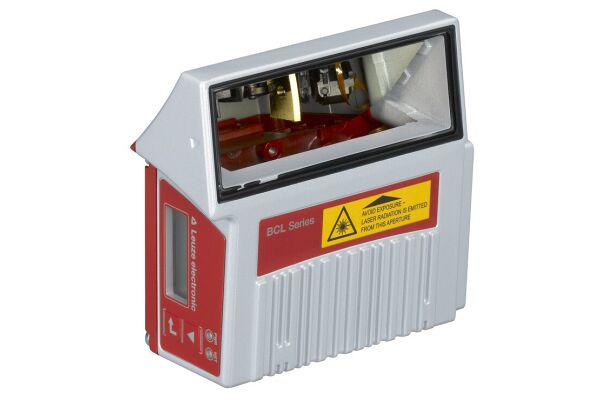

BCL 304i SM 100 D Stationary bar code reader

BCL 304i SM 100 D
This stationary barcode reader features advanced functions like AutoConfig, AutoControl, and code fragment technology. It offers a typical scanning rate of 1,000 scans per second and operates efficiently at reading distances between 30 to 290 mm. The device utilizes a line scanner with a deflecting mirror and has a lateral light beam exit. It supports PROFIBUS DP and USB interfaces, and connects via a plug connector.
  • SKU
    2110-50116357
  • Manufacturer code
    50116357
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    103 mm
  • Height of sensor
    44 mm
  • Length of sensor
    96 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    PROFIBUS DP
    USB 2.0
  • Reading method
    Line scanner with deflecting mirror
  • Light beam exit
    Lateral with deflecting mirror
  • Display
    LED, Monochromatic
  • Manufacturer Leuze

Product attachments

DS_BCL-304i-SM-100-D_eng_50116357 (LINK)
