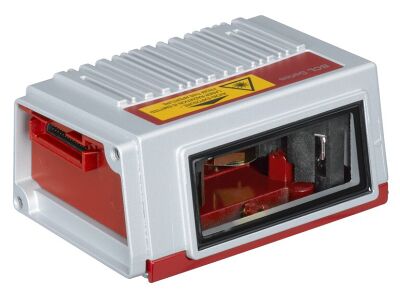

BCL 301i SM 102

This stationary barcode reader offers advanced functions including AutoConfig, AutoControl, and LED indicators. It features a scanning rate of 1,000 scans/s and a reading distance of 60 to 320 mm. The device uses a line scanner method and has a front light beam exit.

SKU

2110-50116313
Manufacturer code

50116313
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

95 mm
Height of sensor

44 mm
Length of sensor

68 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Type of interface for safety communication

Other
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

MultiNet Plus
RS 485
USB 2.0
Reading method

Line scanner
Light beam exit

Front
Display

LED

Manufacturer Leuze

Product attachments

DS_BCL-301i-SM-102_eng_50116313 (LINK)
