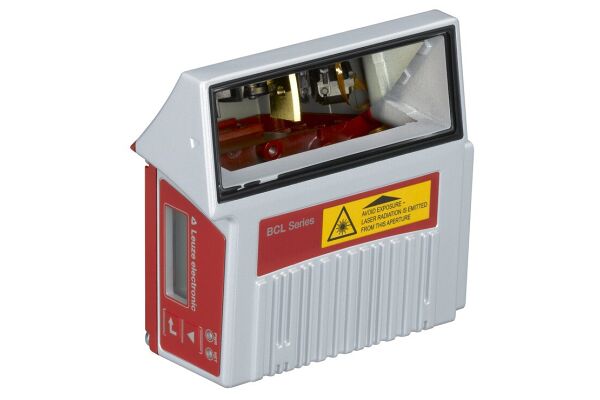

This stationary barcode reader features advanced functions like AutoConfig, LED indicator, and code fragment technology. It offers a typical scanning rate of 1,000 scans per second and supports a reading distance of 70 to 670 mm. The device utilizes a line scanner with a deflecting mirror and provides lateral light beam exit. It operates with a supply voltage of 18 to 30 V DC and includes selectable inputs/outputs. The interface options include RS 232, RS 422, and USB connectivity.

SKU

2110-50116210
Manufacturer code

50116210
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

103 mm
Height of sensor

44 mm
Length of sensor

96 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

RS 232
RS 422
USB 2.0
Reading method

Line scanner with deflecting mirror
Light beam exit

Lateral with deflecting mirror
Display

LED, Monochromatic

Manufacturer Leuze
