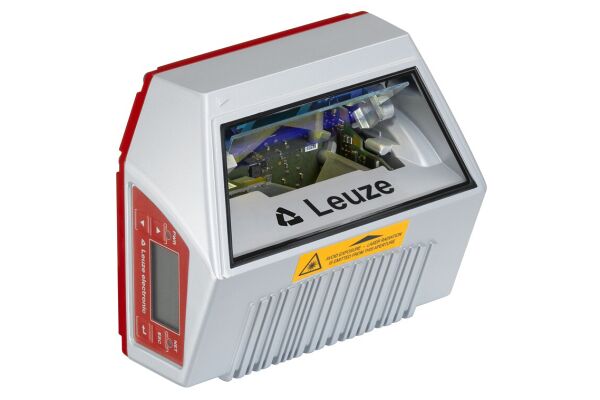

Compact stationary barcode reader with advanced functionalities and versatile connectivity options.

SKU

2110-50105485
Manufacturer code

50105485
Operation agent-safety class

Safety class 3
Width sensor

173 mm
Height of sensor

84 mm
Length of sensor

147 mm
With configurable message output

true
Laser protection class

Class 2
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

650 nm
With restart blockage

false
Suitable for safety functions

false
Type of interface for safety communication

Other
Scanning interval

10 Hz
Supplyoltage (V)

10 ... 30
Ambient temperature

0 ... 40
Type of interface

MultiNet Plus
RS 485
USB
Reading method

Oscillating-mirror scanner
Light beam exit

Zero position at side at angle less than 90°
Display

LED, Monochromatic
Most suitable applications

Barcode scanning in industrial environments Automated product identification systems
Operational controls

Button(s)
