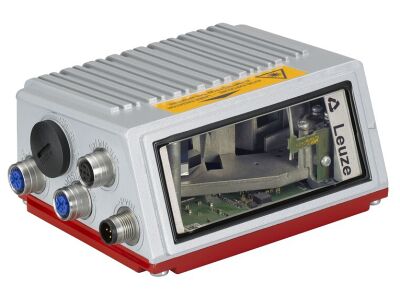

BCL 500i SM 102 H Stationary bar code reader

BCL 500i SM 102 H
This is a stationary barcode reader with advanced features including heating, AutoConfig, and LED indicators. It provides high-speed scanning and a versatile interface.
  • SKU
    2110-50105463
  • Manufacturer code
    50105463
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    123.5 mm
  • Height of sensor
    63 mm
  • Length of sensor
    106.5 mm
  • With configurable message output
    true
  • Laser protection class
    Class 2
  • Ambient temperature
    -35 - 40 °C
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    650 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Type of interface for safety communication
    Other
  • Supplyoltage (V)
    24
  • Ambient temperature
    -35 ... 40
  • Type of interface
    RS 232
    MultiNet Plus
    RS 485
    USB
    RS 422
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED, Monochromatic
  • Operational controls
    Button(s)
  • Special version
    Heating
  • Manufacturer Leuze

Product attachments

DS_BCL-500i-SM-102-H_eng_50105463 (LINK)
