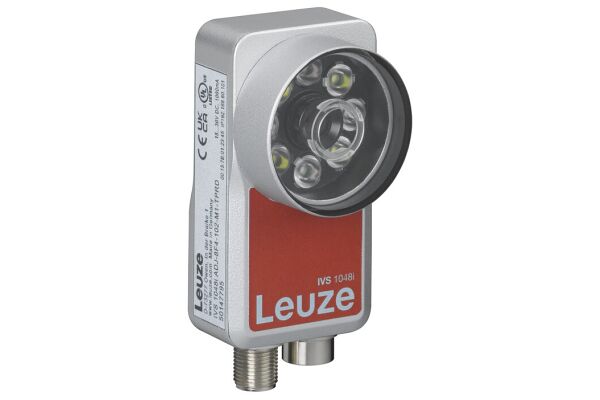

A compact vision sensor designed for versatile detection and reading tasks with advanced software functions.

SKU

50147795
Manufacturer code

50147795
Number of semiconductor outputs with signalling function

5
Type of electric connection

Connector M12
Operation agent-safety class

Safety class 3
Width sensor

45 mm
Height of sensor

85 mm
Length of sensor

35 mm
With configurable message output

true
Ambient temperature

0 - 50 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
With restart blockage

false
Suitable for safety functions

false
Most suitable applications

Detecting surfaces, edges, and forms; Parts detection based on brightness, contrast, and pixel analysis.
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 50
Interface

Ethernet
PROFINET
Camera resolution horizontal (px)

736
Camera resolution vertical (px)

480
Transmission protocol

TCP/IP
UDP
Telnet
FTP/SFTP
PROFINET

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
