Key - Selector switch
Selector switch
Ex-Zone 1 and 21

SKU

4030661576176
Manufacturer code

101216233
Type of Execution, construction form

Round
Diameter, hole, mounting diameter

22.3 mm
Stroke, Actuating stroke

4 mm
Thickness, Front panel, maximum

6 mm
Explosion protection parameters, category

2G
2D
Explosion protection parameters, designation

D II 2G Ex ib IIC Gb
D II 2D Ex ib IIIC Db
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN 60079-14
EN 60079-11
Explosion protection parameters, zones

22
2
1
21
Material, front ring

Aluminium
Material, identification label

Stainless steel (V4A)
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 60947-5-5
PIM maintenance status

Discharge "Online catalog"
Safety parameters, Mission time

20 Year(s)
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661576176
SAP, product group

Initial
SAP, gross weight

170.000 g
SAP, net weight

170.000 g
Temperature, ambient temperature, maximum

55 °C
Web Type

Product range
Type of Execution, Key withdrawal position

Position 0 and I
Type of Execution, Latching position

right
Number, plunger

1
Number, Switch positions

2
Selection (Yes/No), latching

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal

Cart

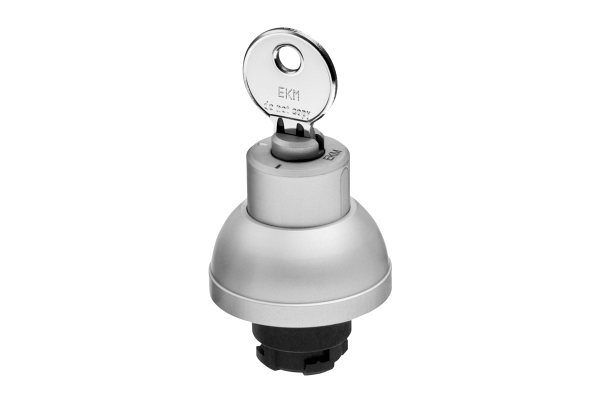

EX-RSS21S12/EKM31 EX command push button
