Isolating transducer, 1-channel, Operating voltage 10…30 VDC, Current input 0/4…20 mA, Current output 0/4…20 mA (source or sink), Voltage output 1 V…5 V (source), Relay output (invertable) for monitoring an adjustable limit value, Configuration via rotary coding switches and DIP switches, Wire-break monitoring of input circuit, Full galvanic isolation, Reverse-polarity-protected input, HART transparent, Removable spring-type terminals, Power-Bridge (male connector incl. in delivery), ATEX, IECEx, Use in Zone 2, SIL 2

SKU

4047101311167
Manufacturer code

7580310
Rated supply voltage at DC

10 - 30 V
SIL according to IEC 61508

2

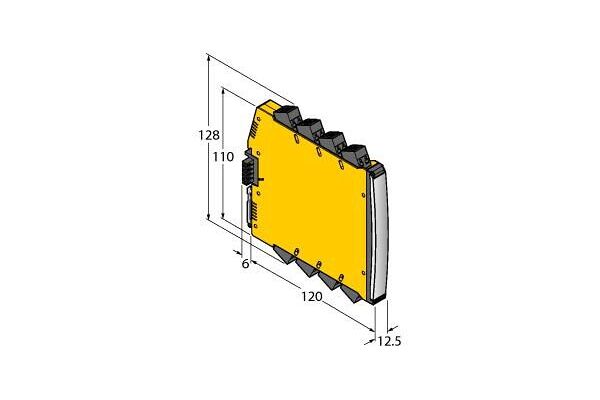

Width

12.5 mm
Height

128 mm
Type of electric connection

Spring clamp connection
Mounting method

Snap mounting support rail
Depth

120 mm
Degree of protection (IP)

IP20
Power consumption

4 W
Operating temperature

-25 - 70 °C
Load

800 - 800 Ohm
Construction type of device

Built-in device
Network protocol

HART
Approvals / Compliance

SIL 2
Connector gender

male

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
