Isolating switching amplifier, 4-channel, Operating voltage 10…30 VDC, 4-channel, 4 relay outputs, Separate relay output for collective fault signals (NO), Configuration via rotary and DIP switches, 4-channel operation or signal multiplexing (switchable), Adjustable output mode (NO/NC), Input circuits monitored for wire break/short circuit (can be switched ON/OFF), Complete galvanic isolation, Input reverse-polarity protected, Removable spring-type terminals, Power-Bridge (connector incl. in delivery), ATEX, IECEx, Use in Zone 2, SIL 2

SKU

4047101541212
Manufacturer code

100028616
Rated supply voltage at DC

10 - 30 V
Switching voltage

250 V
Switching current

2 A
Switching frequency

15 Hz
SIL according to IEC 61508

2

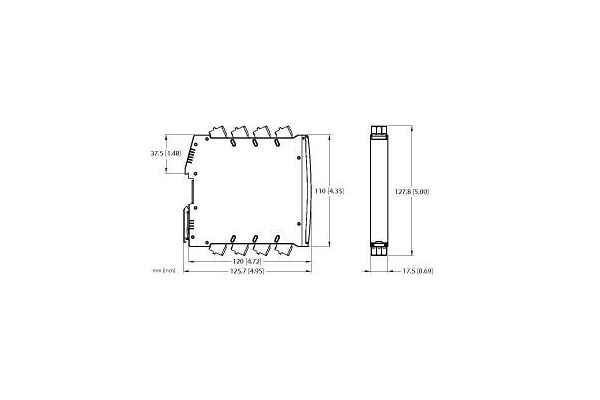

Width

17.5 mm
Height

128 mm
Mounting method

Snap mounting support rail
Depth

120 mm
Degree of protection (IP)

IP20
Power consumption

2.3 W
Operating temperature

-25 - 70 °C
Approvals / Compliance

SIL 2
Type of switch function

NO/NC contacts

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
