IMX12-DI03-1S-2T-SPR/24VDC Isolating switching amplifier, 1-channel

IMX12-DI03-1S-2T-SPR/24VDC

Isolating switching amplifier, 1-channel, Operating voltage 10…30 VDC, Transistor output (≤10 kHz), Transistor alarm output, Switchable: Alarm output or signal doubling, Output mode adjustable (NO/NC mode), Input circuits monitored for wire-break/short-circuit (ON/OFF switchable), Complete galvanic isolation, Input reverse-polarity protected, Removable screw terminals, Power bridge (connector incl. in delivery), ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, Use in Zone 2, SIL 2

  • SKU
    4047101310474
  • Manufacturer code
    7580013
  • Rated supply voltage at DC
    10 - 30 V
  • Number of inputs, according to NAMUR
    1
  • Switching voltage
    30 V
  • Switching current
    0.1 A
  • Switching frequency
    10000 Hz
  • SIL according to IEC 61508
    2

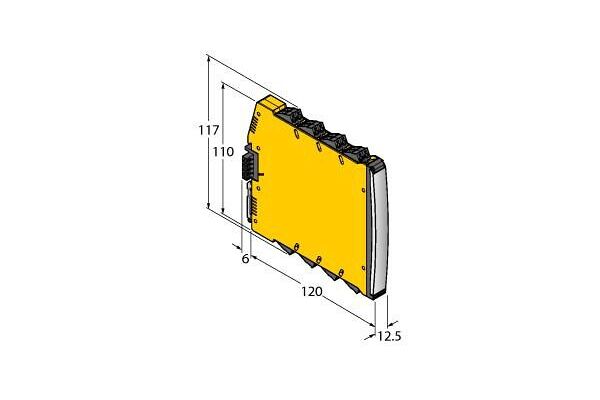

  • Width
    12.5 mm
  • Height
    117 mm
  • Type of electric connection
    Screw connection
  • Mounting method
    Snap mounting support rail
  • Depth
    120 mm
  • Degree of protection (IP)
    IP20
  • Power consumption
    0.8 W
  • Operating temperature
    -25 - 70 °C
  • Approvals / Compliance
    SIL 2
  • Type of switch function
    NO/NC contacts
  • Manufacturer Turck

Product attachments

file-48815-a8ecb4f6290be70f9919bd17425d7060.pdf (PDF, 342.27 kB)
