IMXK12-DI01-1S-1R-0/24VDC Isolating switching amplifier, 1-channel

IMXK12-DI01-1S-1R-0/24VDC

Isolating switching amplifier, 1-channel, Operating voltage 10…30 VDC, Relay output, Adjustable output mode (NO/NC mode), Input monitored for wire breaks/short circuits (ON/OFF switchable), Complete galvanic isolation, Input reverse-polarity protected, Removable screw terminals, ATEX, IECEx, cUL, Installation in zone 2, SIL 2

  • SKU
    4047101441475
  • Manufacturer code
    100000679
  • Rated supply voltage at DC
    10 - 30 V
  • Switching voltage
    250 V
  • Switching current
    2 A
  • Switching frequency
    15 Hz
  • SIL according to IEC 61508
    2

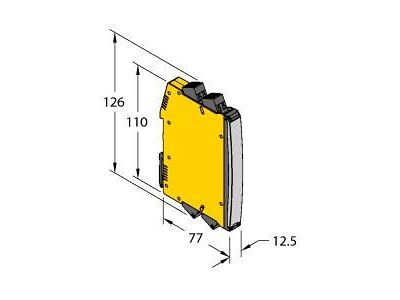

  • Width
    12.5 mm
  • Height
    117 mm
  • Mounting method
    Snap mounting support rail
  • Depth
    80 mm
  • Degree of protection (IP)
    IP20
  • Power consumption
    1 W
  • Operating temperature
    -25 - 70 °C
  • Approvals / Compliance
    SIL 2
  • Type of switch function
    NO/NC contacts
  • Manufacturer Turck

Product attachments

file-35810-d595966dd1fcb8a8f4bd8599574df800.pdf (PDF, 201.79 kB)
