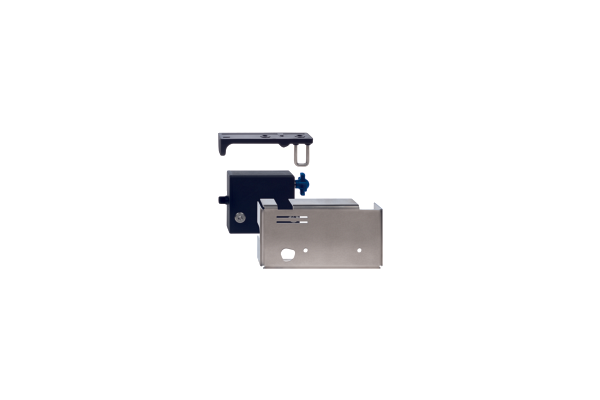

Explosion protection for ATEX Zones 2 and 22
RFID-technology for needs-based protection against tampering
Thermoplastic enclosure
Suitable for mounting to profile systems
Suitable for hinged and sliding guards
Series-wiring
Manual release

SKU

4030661632858
Manufacturer code

103052216
Type of Execution, IP Protection class, General

IP67
IP66
IP69
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, Sensor

40.3 mm
Length, Sensor

178 mm
Width, Sensor

93 mm
Explosion protection parameters, category

3D
3G
Explosion protection parameters, designation

Ex tc IIIB T95°C Dc X
D II 3G Ex ec IIB T5 Gc
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN 60079-7
Explosion protection parameters, zones

22
2
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN ISO 13849-1
EN IEC 61508
EN IEC 60947-5-3
EN ISO 14119
PIM maintenance status

Technische Produktdaten vollständig für Ausleitung
PNV, standard, certificates

FCC
IC
Type of electric connection

Connector M12, 8-pole, A-coded
Safety parameter

EN ISO 13849-1
EN IEC 61508
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661632858
SAP, product group

Initial
SAP, gross weight

1100.000 g
SAP, net weight

1100.000 g
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

+0 ... +50 °C
Temperature, ambient temperature, maximum

50 °C
Temperature, ambient temperature, minimum

0 °C
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Web Type

Product range
Selection (Yes/No), Safety functions

Yes
Coding, Coding level according to EN ISO 14119

High
Note, General

For doors that are flush with the door frame, the optional m
For glass and Makrolon doors, the optional mounting kit MS-A
As long as the actuating unit remains inserted in the soleno
Note, Relative humidity

non-condensing
non-icing
Time, duty cycle solenoid

100 %
Time, test pulse duration, maximum

1 ms
Time, test pulse interval, solenoid control, minimum

40 ms
Selection (Yes/No), Manual release

Yes
Type of execution, mounting, Screws

2x M6
Number, Actuating directions

1
Selection (Yes/No), Traceparts

Yes
Power to lock

Yes
Type of application, Relative humidity, maximum

93 %
Coding, general information

Individual coding, multiple teaching
Current, consumption at 24V, magnet control

10 mA
Current, consumption at 24V, safety inputs

5 mA
Current, consumption, solenoid ON, average

200 mA
Current, consumption, solenoid ON, peak

350 mA / 200 ms
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Current, Utilisation category DC-12, Diagnostic output

0.05 A
Current, Utilisation category DC-12, Fail-safe digital output

0.25 A
Current, Utilisation category DC-13, Diagnostic output

0.05 A
Current, Utilisation category DC-13, Fail-safe digital output

0.25 A
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of Execution, Overvoltage category VDE 0100

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Protection class (Operating resource)

3
Type of execution, switching output, diagnostic output, electric

short-circuit proof, p-type
Type of execution, switching output, fail-safe output, electric

short-circuit proof, p-type
Height, permissible installation height above sea level, maximum

2000 m
Lenght, sensor chain, maximum

200 m
Area, ensured switch distance OFF S_ar

20 mm
Area, ensured switch distance ON S_ao

1 mm
Range, switch distance S, typical

2 mm
Electrical data, Classification, ZVEI CB24I: Sink, Solenoid control (inputs)

C0
Electrical data, Classification, ZVEI CB24I: Sink, Safety digital inputs

C1
Electrical data, Classification, ZVEI CB24I: Sink, fail-safe digital outputs

C1
C2
Electrical data, Classification, ZVEI CB24I: Source, Solenoid control (inputs)

C1
C2
C3
Electrical data, Classification, ZVEI CB24I: Source, Safety digital inputs

C1
C2
C3
Electrical data, Classification, ZVEI CB24I: Source, fail-safe digital outputs

C2
Electrical data, Connector 1, Pin assignment, PIN 1

A1 Supply voltage UB
Electrical data, Connector 1, Pin assignment, PIN 2

X1 Safety input 1
Electrical data, Connector 1, Pin assignment, PIN 3

A2 GND
Electrical data, Connector 1, Pin assignment, PIN 4

Y1 Safety output 1
Electrical data, Connector 1, Pin assignment, PIN 5

OUT Diagnostic output
Electrical data, Connector 1, Pin assignment, PIN 6

X2 Safety input 2
Electrical data, Connector 1, Pin assignment, PIN 7

Y2 Safety output 2
Electrical data, Connector 1, Pin assignment, PIN 8

IN Solenoid control
Electrical data, Designation device connection, Diagnostic outputs

OUT
Electrical data, Designation device connection, Solenoid control

IN
Electrical data, Designation device connection, Safety inputs

X1 and X2
Electrical data, Designation device connection, Safety outputs

Y1 and Y2
Electrical data, External wiring and device fuse rating

2 A gG
Electrical data, Fuse rating, Current, maximum

2 A
Electrical data, Inputs, Switching thresholds for magnet inputs

-3 V … 5 V (Low)
15 V … 30 V (High)
Electrical data, inputs, switching thresholds for fail-safe inputs

−3 V … 5 V (Low)
15 V … 30 V (High)
Electrical data, Utilisation category DC-12, Diagnostic output [generated product variant]

24 VDC / 0.05 A
Force, clamping force in accordance with EN ISO 14119

1150 N
Force, clamping force, maximum

1500 N
Force, Latching force, adjustable, position 1

25 N
Force, Latching force, adjustable, position 2

50 N
Material, fixing screws

Stainless steel (V4A)
Note, Mechanical lifetime

When using as door stop: ≥ 50.000 operations (door mass ≤ 5
Note, Type of execution, mounting, Screws

Property class min. 8.8
Note, LED switching conditions display

Supply voltage UB: LED green
Operating condition: LED green
Error / functional defect: LED red
Notes, length, sensor chain

Cable length and cross-section change the voltage drop depen
Note, series connection, sensors

Unlimited number of devices, oberserve external line fusing,
Note, operating voltage, DC

stabilised PELV power supply
Number, fail-safe digital outputs

2
Power, transmit, RFID, maximum

-6 dB/m
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Temperature, storage and transport temperature,[generated product variant]

-10 ... +90 °C
Temperature, storage and transport temperature, maximum

90 °C
Temperature, storage and transport temperature, minimum

-10 °C
Time, Duration of risk, maximum

200 ms
Time, frequency band, RFID

125 kHz
Time, Reaction, Actuator, maximum

100 ms
Time, Reaction, Inputs maximum

1.5 ms
Time, Switching frequency, maximum

0.5 Hz
Time, test pulse duration, safety, digital output, maximum

0.5 ms
Time, test pulse interval, safety digital input, minimum

100 ms
Time, test pulse interval, safety digital output, typical

1000 ms
Time, Time to readiness, maximum

5000 ms
Tolerance, operating voltage, DC, maximum

10 %
Tolerance, operating voltage, DC, minimum

-15 %
Torque, tightening torque, screw, mounting, maximum

8 Nm
Voltage, voltage drop Ud, maximum

2 V
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Voltage, Utilisation category DC-12, Diagnostic output

24 VDC
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Voltage, Utilisation category DC-13, Diagnostic output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), latching

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Series-wiring

Yes
Selection (Yes/No), Short circuit detection

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
