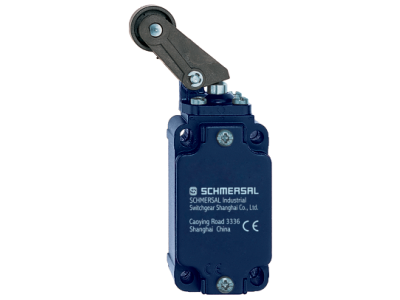

EX-T3K335-11Y EX machine safety switch
Manufacturer: Schmersal Code: 101212078 SKU: 4030661448640
Ex-Zone 1 and 21
Actuation from bottom parallel to the switch, therefore only suitable for small housings.
Metal enclosure
Good resistance to oil and petroleum spirit

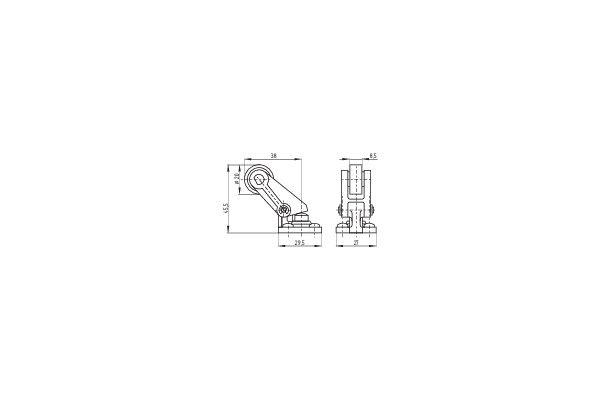

40,5 mm x 76 mm x 38 mm
Actuator heads can be repositioned by 4 x 90°
Mounting details to EN 50041
1 Cable entry M 20 x 1.5
Actuation from bottom parallel to the switch, therefore only suitable for small housings.
Metal enclosure
Good resistance to oil and petroleum spirit
40,5 mm x 76 mm x 38 mm
Actuator heads can be repositioned by 4 x 90°
Mounting details to EN 50041
1 Cable entry M 20 x 1.5
- SKU4030661448633
- Manufacturer code101212077
- Current, Thermal test current5 A
- Actuating elementAngle roller lever
- Type of Execution, Housing construction formNorm construction design
- Type of Execution, IP Protection class, GeneralIP65
- Type of Execution, Mechanical life, minimum,1000000 Operations
- Switching principleSlow action
- Diameter, Wire cross-section, AWG13 AWG
- Diameter, Cable cross-section of the cable glands, maximum12 mm
- Diameter, Cable cross-section of the cable glands, minimum7 mm
- Height, Sensor121.5 mm
- Length, Sensor38 mm
- Width, Sensor58.25 mm
- Electrical data, Cable section, maximum2.5 mm²
- Electrical data, Cable section, minimum1 mm²
- Electrical data, Max. fuse rating6 A gG D-fuse
- Electrical data, Utilisation categoryDC-13
AC-15
AC-1 - Explosion protection parameters, category2D
2G - Explosion protection parameters, designationD II 2D Ex tb IIIC T80°C Db
D II 2G Ex d e IIC T6 Gb - Explosion protection, regulationsEN IEC 60079-0
EN 60079-31
EN 60079-1
EN 60079-7 - Explosion protection parameters, zones21
1 - Force, Actuating force, minimum17 N
- Material, contacts, electricalSilver
- Housing materialMetal, zinc die-cast
- Material, enclosure coatingpainted
- Movement, actuating speed, maximum1 m/s
- Standard, standardsEN IEC 60947-5-1
BG-GS-ET-15 - Note, Electrical Data, Cable sectionAll indications including the conductor ferrules.

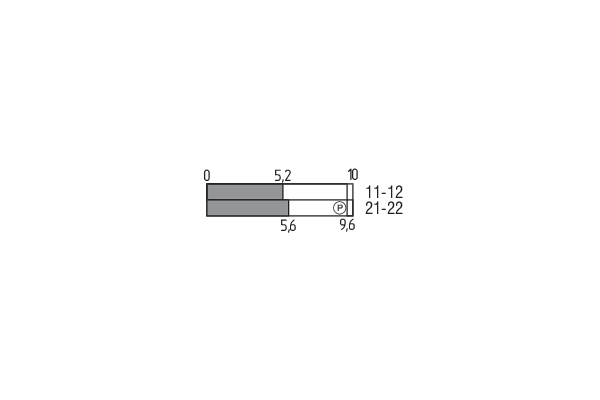

- Number, Safety contacts2
- PIM maintenance statusDischarge "Online catalog"
- PNV, standard, certificatescULus
CCC
CCC EX
IEC Ex
DEKRA - Type of switch functionOpener (NC)
- Type of electric connectionScrew terminals M20 x 1.5
- Safety parameters, Mission time20 Year(s)
- Safety parameterEN ISO 13849-1
- SAP, basic quantity unitPiece
- SAP, EAN (European Article Number)4030661448633
- SAP, product groupInitial
- SAP, gross weight320.000 g
- SAP, net weight320.000 g
- Included in delivery, number and type, generalEx-certified screwed cable gland
- Temperature, ambient temperature, minimum-20 °C
- Time, Bounce duration, maximum3 ms
- Time, Switching frequency1800 /h
- Voltage, Rated impulse withstand voltage4 kV
- Voltage, rated insulation voltage500 V
250 VAC - Voltage, Utilisation category AC-15230 VAC
- Voltage, Utilisation category DC-1324 VDC
- Web TypeProduct range
- Selection (Yes/No), Safety functionsYes
- Energy, Impact energy, maximum7 J
- Note, time, switchover timeSwitchover time in accordance with actuating speed
- Note, Motion, Actuating SpeedActuating speed with actuating angle 30° to switch axis
- Temperature, ambient temperature, cable section 1mm2, maximum50 °C
- Temperature, ambient temperature, cable section 2.5mm2, maximum55 °C
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
