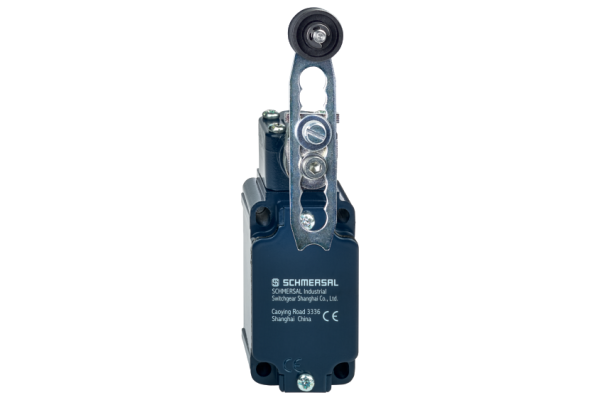

Snap action with constant contact pressure up to switching point
Explosion protection for ATEX Zones 2 and 22
Metal enclosure
Good resistance to oil and petroleum spirit
40,5 mm x 76 mm x 38 mm
Actuator heads can be repositioned by 4 x 90°
Mounting details to EN 50041
1 Cable entry M 20 x 1.5

SKU

4030661390628
Manufacturer code

101211766
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

4 A
Actuating element

Roller lever
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

30000000 Operations
Switching principle

Snap action
Diameter, Wire cross-section, AWG

13 AWG
Diameter, Cable cross-section of the cable glands, maximum

12 mm
Diameter, Cable cross-section of the cable glands, minimum

7 mm
Height, Sensor

173.5 mm
Length, Sensor

57.25 mm
Width, Sensor

40.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection parameters, designation

D II 3D Ex tc IIIC T90°C Dc X
D II 3G Ex nC IIC T5 Gc X
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Material, contacts, electrical

Silver
Housing material

Aluminium
Material, enclosure coating

painted
Movement, actuating speed, maximum

2.5 m/s
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Auxiliary contacts

1
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"

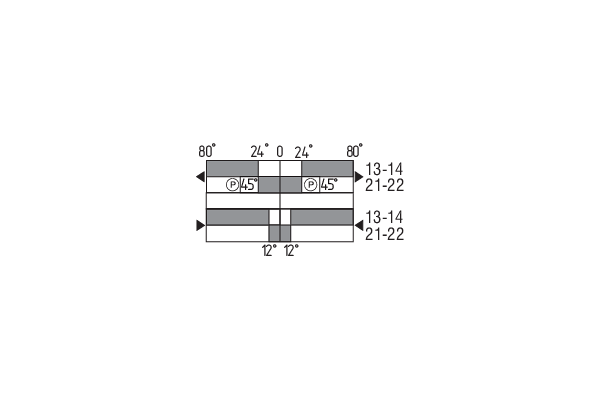

Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661390628
SAP, product group

Initial
SAP, gross weight

340.000 g
SAP, net weight

340.000 g
Temperature, Ambient temperature[generated product variant]

-20 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-20 °C
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Safety functions

Yes
Energy, Impact energy, maximum

4 J
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
Note, time, bounce duration

Bounce duration in accordance with actuating speed
Material, lever

Metal film
Material, Castor

Plastic
Time, Switchover time, maximum

2 ms
Tightening torque, actuating torque, minimum

0.26 Nm

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
