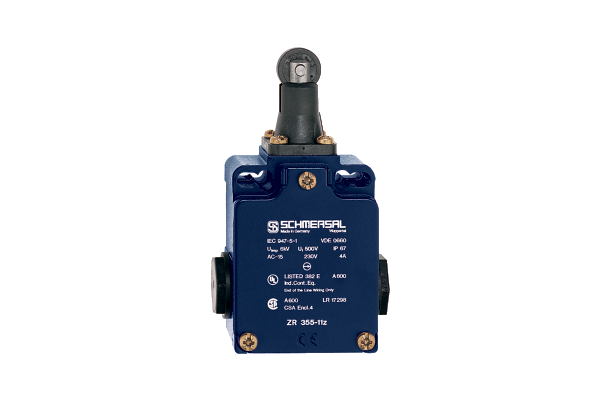

Snap action with constant contact pressure up to switching point
Metal enclosure
Good resistance to oil and petroleum spirit
66,7 mm x 76 mm x 38 mm
Actuator heads can be repositioned by 4 x 90°
Including Ex-certified screwed cable gland and screw plug
Mounting details to EN 50041
3 cable entries M 20 x 1.5

SKU

4030661355320
Manufacturer code

101193310
CAD, traceparts, product ID

33-22052019-077478
Current, Thermal test current

10 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

1 A
Actuating element

Roller plunger
Type of Execution, Housing construction form

Norm construction design
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

30000000 Operations
Switching principle

Snap action
Diameter, Wire cross-section, AWG

13 AWG
Diameter, Cable cross-section of the cable glands, maximum

12 mm
Diameter, Cable cross-section of the cable glands, minimum

7 mm
Height, Sensor

116.6 mm
Length, Sensor

38 mm
Width, Sensor

40.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection parameters, designation

D II 3D Ex tc IIIC T90°C Dc X
D II 3G Ex nC IIC T5 Gc X
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Force, Actuating force, minimum

12 N
Material, contacts, electrical

Silver
Housing material

Light alloy die-casting
Material, enclosure coating

painted
Movement, actuating speed, maximum

0.5 m/s
Standard, standards

EN IEC 60947-5-1
BG-GS-ET-15
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Auxiliary contacts

1
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"

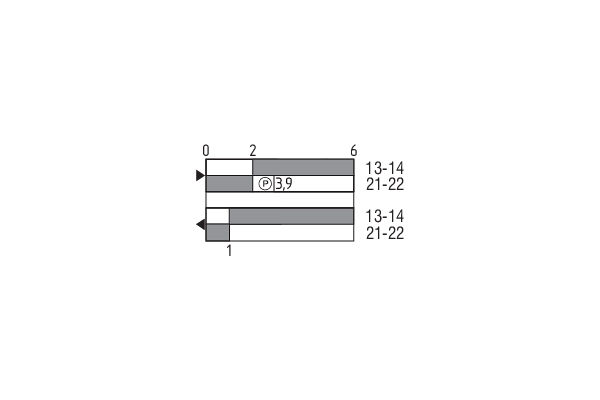

Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661355320
SAP, product group

Initial
SAP, gross weight

287.000 g
SAP, net weight

287.000 g
Temperature, Ambient temperature[generated product variant]

-20 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-20 °C
Time, Switching frequency

5000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Safety functions

Yes
Type of Execution, Actuator type DIN EN 50041

C
Energy, Impact energy, maximum

1 J
Note, Motion, Actuating Speed

Actuating speed with actuating angle 30° to switch axis
Note, time, bounce duration

Bounce duration in accordance with actuating speed
Time, Switchover time, maximum

2 ms
