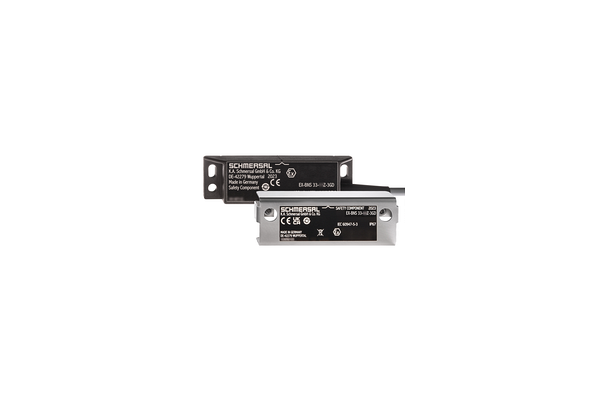

EX-BNS 33-11Z-3GD 5M EX machine safety sensor

EX-BNS 33-11Z-3GD 5M
Explosion protection for ATEX Zones 2 and 22
Thermoplastic enclosure

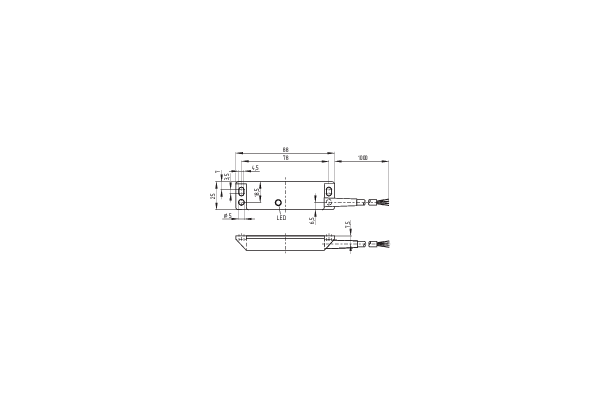

88 mm x 25 mm x 13 mm
Concealed mounting possible
Insensitive to transverse misalignment
no mechanical wear
  • SKU
    4030661625928
  • Manufacturer code
    103050101
  • CAD, traceparts, product ID
    33-22052019-077517
  • Explosion protection parameters, designation
    D II 3D Ex tc IIIC T80°C Dc X
    D II 3G Ex nC IIC T6 Gc X
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661625928
  • SAP, product group
    Initial
  • SAP, gross weight
    260.060 g
  • SAP, net weight
    260.060 g
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Current, Switching current, maximum
    0.4 A
  • Type of Execution, Active area
    lateral
  • Actuating element
    Magnet
  • Type of Execution, Housing construction form
    Block
  • Type of Execution, Terminals, mechanical
    not flush
  • Type of Execution, IP Protection class, General
    IP67
  • Diameter, Wire cross-section, AWG
    23 AWG
  • Diameter, Wire cross-section,
    0.25 mm<sup>2</sup>
  • Length, Cable
    5 m
  • Length, Sensor
    13 mm
  • Area, ensured switch distance OFF Sar
    15 mm
  • Area, ensured switch distance ON Sao
    5 mm
  • Energy, Impact energy, maximum
    7 J
  • Explosion protection, Manufacturer's declaration
    ATEX Zone 2 and 22
  • Explosion protection parameters, category
    3D
    3G
  • Explosion protection, regulations
    EN IEC 60079-0
    EN 60079-31
    EN IEC 60079-15
  • Explosion protection parameters, zones
    22
    2
  • Material, cable mantle
    PVC
  • Motion, Direction of motion
    Head-on to the active surface
  • Note, General
    Contact symbols shown for the closed condition of the guard
    The contact configuration for versions with or without LED i
  • Number, NC contacts
    2
  • Number, NO contacts
    1
  • Number, cable wires, indication with cable cross-section, electrical
    4
  • Power, switching capacity, maximum
    10 W
  • Type of electrical connection
    Cable
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Time, Switching frequency, maximum
    5 Hz
  • Voltage, Switching voltage, VAC, maximum
    100 VAC
  • Voltage, Switching voltage, VDC, maximum
    100 VDC
  • Selection (Yes/No), Short-circuit recognition
    Yes
  • Selection (Yes/No), Short circuit detection
    Yes
  • Type of Execution, Switching output, Digital output, electric
    Miscellaneous, Reed contacts
  • Height, Sensor
    25 mm
  • Width, Sensor
    88 mm
  • Review, selection (yes/no), Prerequisite evaluation unit
    Yes
  • Selection (Yes/No), CADENAS
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
